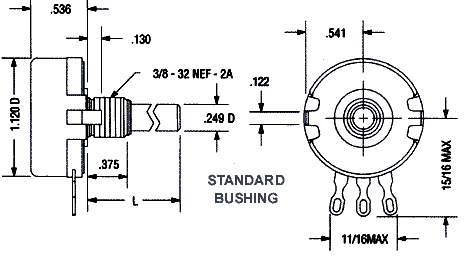

MIL Style RV4  ( Series K ) Single Turn Carbon Element Potentiometer

• The RV4 or series K potentiometers , low profile and lateral lug terminals. One piece housing and bushing.
• Rated at .5 watts standard with 1/8" diameter stainless steel shafts and gold plated terminals.
• They are easily customized with many options including shaft lengths, resistance values, panel seals center taps and switches.
• Life cycle : 25,000 operations.
• Resistance range : 50 ohm to 5 meg ohms.
• 314º Mechanical Rotation.
• Rated at 2 watts standard with 1/4" diameter stainless steel shafts and gold plated terminals.
• They are easily customized with many options including shaft lengths, resistance values, panel seals center taps and switches.
• Life cycle : 25,000 operations.
• DOWNLOAD : RV4 SPEC SHEET
