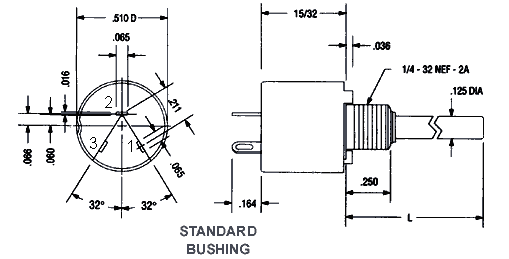

MIL Style RV6 ( Series S ) Carbon Element Potentiometer
- The RV6 or series S potentiometers are ideal for applications which require high reliability in a compact size. One piece bushing and housing.
- Rated at .5 watts they come standard with 1/8" diameter stainless steel slotted shafts.
- The RV6 is easily customized with many options including shaft lengths, resistance values,
- panel seals, center taps and switches.
- Life cycle : 25,000 operations.
- Resistance range : 100 ohm to 5 meg ohm
- 295º Mechanical Rotation.
- DOWNLOAD : RV6 SPEC SHEET
POPULAR PART NUMBERS
RV6NAYSD102A |
RV6LAYSA102A
|
| Crosses to Ohmite : AS , ASM | |
| Crosses to Clarostat: 392M / 382C3 | |
| Crosses to Allen Bradley: WA2G056S, WA2G024S, WA2L056S, WA2L040S | |
