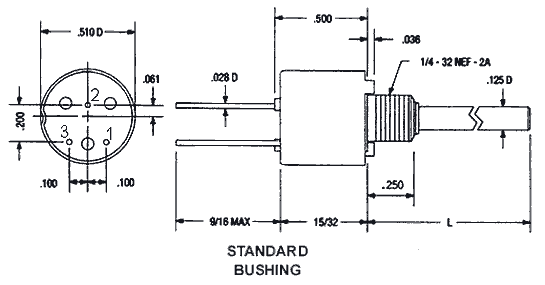

MIL Style RV8 ( Series SPR ) Single Turn Carbon Element Potentiometer
- The RV8 or series SPR potentiometer for PCB applications requiring a rugged potentiometer.
- Rated at .5 watts they come standard with 1/8" diameter stainless steel shafts and gold plated terminals. BOARD WASHABLE.
- They are easily customized with many options including shaft lengths, resistance values,
- panel seals center taps and switches.
- Life cycle : 25,000 operations.
- Resistance range : 100 ohm to 5 meg ohms
- 295º Mechanical Rotation.
Popular model numbers:
| SPR-xxxx | RV8NAY-xxxx | SPRL-xxxx | RV8LAY-xxxx |
Crosses to Clarostat 392 |
|||
Crosses to Allen Bradley W or G |
|||
