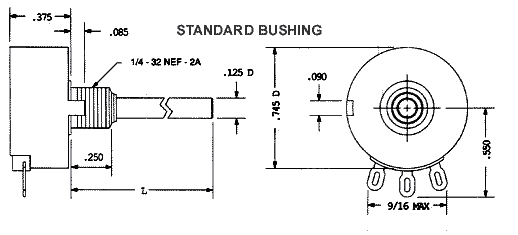

MIL Style RV5 ( Series T ) Single Turn Carbon Element Potentiometer
- The RV5 or series T potentiometers , low profile and lateral lug terminals. One piece housing and bushing.
- Rated at .5 watts standard with 1/8" diameter stainless steel shafts and gold plated terminals.
- They are easily customized with many options including shaft lengths, resistance values, panel seals center taps and switches.
- Life cycle : 25,000 operations.
- Resistance range : 100 ohm to 5 meg ohms.
- 300º Mechanical Rotation.
- DOWNLOAD : RV5 SPEC SHEET
