Too many choices? Through our experience we have designed pots used in flight simulators,nuclear energy plants and jet cockpit lighting controls. We can help you make an informed potentiometer decision. Call toll free 800-523-3561, 610-359-1002, fax 610-353-1674 or email fast quotes.

MW12B potentiometer
  • MW12B Series - 12 mm (1/2") body diameter

  • Shaft Diameter : (MW12B) 0.125" or (12HP) 3 mm
  • Available in 3,5 or 10 turns, panel or servo mounting.
  • Bottom (L) or rear (R) solder lugs
  • Standard resistance values available :
  • 3 turn: 100,200,500,1K,2K,5K,10K, 20K,50K ohms - Lin.: +/-.35.%
  • 5 turn: 100,200,500,1K,2K,5K,10K, 20K,50K ohms - Lin.: +/-.35.%
  • 10 turn: 100,200,500,1K,2K,5K,10K,20K,50K,100K ohms - Lin.: +/-.25%
  • Total Resistance tolerance +/-3%
  • Available in long life hybrid version MH12B
  • MW12B Drawing pdf
  • The longer wirewound resistive element of a multiturn provides better power, linearity
  • and setability than a single turn potentiometer. The MW12B features a high temperature plastic housing,
  • brass plated bushing. The rotational life is 1,000,000 shaft rotations. Power rating for the 10 turn version
  • is 1.5 watts.
  • Hybrid Element Version of the MW12B : MH12B

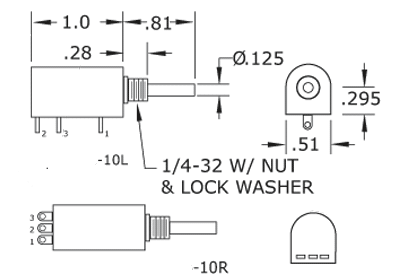

MW12BV potentiometer drawing
