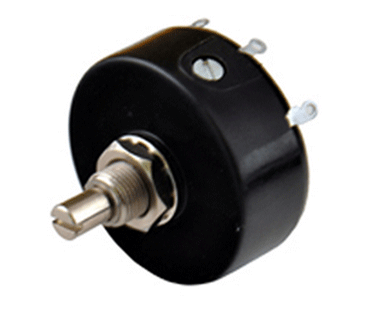

| Single Turn Potentiometers - Wirewound Element for better resolution. |
| Diameter |
Model |
Image |
Description |
Drawing pdf |
1/2"
12 mm |
50M126 |
 |
- Housing is machined from solid aluminum , "o"ring shaft seal, internal lube, sealed body, meets common military specifications. Without stops.
- Standard : 50 to 100K ohms
- Bushing mount #: 50-M123, 50-M124, 50-M126
|
50M126 |
3/4"
19.05 mm |
75M92
|
|
- Specified for military applications. Aluminum body, internal lube ,double sealed housing, double precious metal wipers ,continuous rotation
- Standard : 50 to 100K ohms
- 2 watts
- Bushing mount #:75-M90,75-M91
|
75M92 |
1/2" to
3 " |
RC series
|
 |
- Custom designed to customer specifications
- Options: Taps, multiple gangs, sealed body , o ring shaft seal, servo mount, special angles continuous rotation,
- Servo & bushing mount.
|
|
7/8"
22 mm |
SW22E
(CP22E)
|
 |
- General Purpose Potentiometer
- Electrical 320° Mechanical 320° rotation
- Linearity : 0.5%
- Resis. Tolerance : 3%
- 50 to 100K Ω
- 0.5 watt
|
SW22E |
7/8"
22 mm |
SW22D
(CP22C)
|
 |
- Electrical 320° Mechanical 320° rotation Standard : 50 to 10K ohms
- Linearity : 0.5%
- Resis. Tolerance : 3%
- 0.5 watt
|
SW22D |
7/8"
22 mm |
SW22B
(CP22)
|
 |
- Electrical angle : 350 degrees
- Continuous rotation-aluminum housing
- Standard : 50 to 20K ohms
- Linearity : 0.5%
- Resis. Tolerance : 3%
- Power rating 0.5 watt.
- Servo mount #SW22S
|
SW22B |
7/8"
22 mm |
SLNB22
(LNB22)
|
 |
- Low torque Potentiometer
- Starting torque: .021 oz. in.
- Electrical 355° Mechanical 360° rotation
- Linearity : 0.5%
- Resis. Tolerance : 3%
- Servo mount-ball bearings
- Power rating 0.3 watt
|
SLNB22 |
1 1/4"
30 mm |
SO30B
(OF30)
|
 |
- Waterproof- Sealed Housing
- Oil filled - Fully sealed - Submersible in water to 15 PSI
- Electrical angle : 345 degrees
- Continuous rotation
- Power rating .75 watt
- Servo mount #SO30S
|
SO30B |
3"
75 mm |
300M73 |
 |
- Housing is machined from solid bar stock, "o"ring shaft seal, internal lubricant,sealed body
- up to 6 gangs
- Standard : 50 to 100K ohms
- 7 watts
- Bushing mount #300-M72
|
300M73 |
2"
50 mm |
SSC50S
SCB50
FB50
SCSC50
SCA30
|
 |
- Sine Cosine Potentiometer
- Electrical 360° Mechanical 360°
- Non Linear Function
- Life : Up to 50,000,000 cycles
- Power rating : 1.25 watt
- Also available in 22 & 30 mm body diameters
|
SSC50S |
1 1/16" to
4 3/8" |
Series 17CS-48CS |
 |
-
Custom Design Potentiometers
- Manufactured to customers specifications .
- Designed to produce sine & cosine output voltages simultaneously.
- Designed for military, aerospace & navigational system applications
|
|
| Too many choices? We have designed potentiometers for motorized dental chairs, firing systems on military gun ships and oven controls used by a national sandwich shop franchise. Many more models and options available. |
|
