MIL Style RV2  ( Series N ) Carbon Element Potentiometer

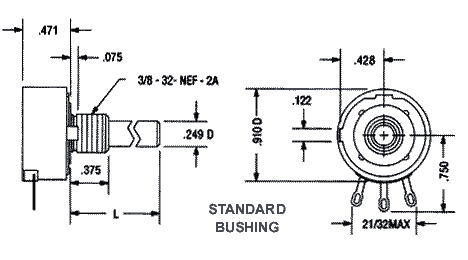

RV2 potentiometer
  • The RV2 or series N potentiometer is suited for commercial and military applications.
  • Rated at 1 watt they come standard with 1/4" diameter stainless steel shafts and gold plated terminals. One piece brass housing.
  • They are easily customized with options including shaft lengths, resistance values, panel seals
  • center taps and switches.
  • Life cycle : 25,000 operations.
  • Resistance range : 100 ohms to 5 meg ohms
  • 300º Mechanical Rotation.
  • DOWNLOAD : RV2 SPEC SHEET
  • More MIL STYLE potentiometers : RV2, RV4, RV5, RV6, RV8, 2RV7
