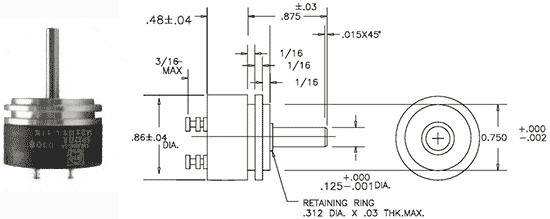

SP22GS Single Turn Servo Mount Conductive Plastic Element
-
Potentiometer- 22 mm (7/8") body diameter
- Shaft Diameter : 0.125".
- Standard resistance values available : 500,1K,2K,5K,10K,20K,50K,100K ohms -
- Stainless steel shaft, thermo plastic body, turret terminals.
- Electrical Angle 340 degrees +/-5, continuous mechanical rotation..
- Power rating : 1 watt
- Options: Sealed body with "o" ring shaft seal, slip clutch to prevent braking the end stops, multi gangs,
- center tap (4th terminal),flatted shaft, ball bearing bushing, no stops, high torque, etc.
- SERVO MOUNT VERSION : SP22GS pdf
- BUSHING MOUNT VERSION : SP22G pdf
