Potentiometer- 22 mm (7/8") body diameter

Shaft Diameter : 0.25" or 6 mm.

Standard resistance values available : 1K,2K,5K,10K ohms -

7/8" Diameter all metal housing, stainless steel shaft.

Gold plated terminals.

Mechanical & Electrical Angle 320 degrees +/-5, with stops.

Available without stops , continuous rotation.

Power rating : 1 watt, 10,000,000 shaft revolutions cycle life

Options: enter tap (4th terminal),flatted shaft, ball bearing bushing, no stops, high torque, etc.

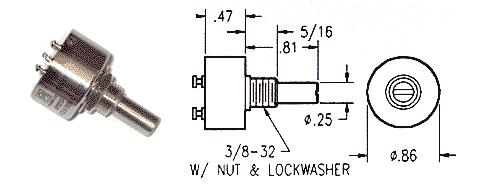

STANDARD BUSHING MOUNT SP22D pdf

Common Part Numbers
SP22D-100K SP22D-10K SP22D-1K SP22D-200 SP22D-20K SP22D-2K	SP22D-500 SP22D-50K SP22D-5K SP22D-BB-10K SP22D-CT-10K SP22D-CT-1K	SP22D-CT-5K SP22D-NS-10K SP22D-NS-1K SP22D-NS-2K SP22D-NS-5K SP22D-SB-10K	SP22D-SB-500 SP22D-SB-5K SP22DS-1K SP22D-2232-500 SP22D-2232 SP22D-2236-2K	SP22D-2237-5K SP22D-2244 SP22D-2246-5K SP22D-2254-500

Too many choices? Through our experience we have designed pots used in aircraft boarding equipment,dental chairs and printing pressess. We can help you make an informed potentiometer decision.

SP22D Single Turn Conductive Plastic Element
