> <> Joystick PRO5-NEMA4 Joystick - Precision Sales Inc.

Weatherproof Joystick PRO5 : 1 Axis  (Back & Forward). Made in USAUS flag

NEMA4 : Weather tight (weatherproof) enclosures. Constructed for either indoor or outdoor use to provide a degree of protection against falling dirt, rain, sleet, snow, windblown dust, splashing water, and hose-directed water.

PRO5 NEMA4  joystick
  • PRO5 Single Axis Controller For Harsh Environments

  • Cast NEMA 4 Housing - 5.5 " height above the panel
  • Weatherproof - Cast Housing construction- Gasketing for outdoor use
  • Handle will spring return to center or friction hold in place.
  • Available with mechanical lock handle (shown) LIFT collar under knob
  • with fingers to move handle
  • Output : 5K or 10K CT Potentiometers and or directional switches or 4-20mA.
  • Designed for outdoor use with plated steel side plates with
  • self lubricating bearings, hard nickel chromium spring return arms, compression
  • style return spring and brass gears. Screw terminal block for easy
  • potentiometer wiring, No soldering necessary.
  • .
  • CLICK HERE FOR PRO5 pdf
PRO5 Handles :

BH with sealed momentary push button

MG27 Push Button

RH with rocker switch

PRO5-18823
MG27 HANDLE
RH HANDLE

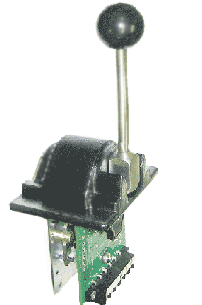

  • PRO 5 Single Axis Controller For Harsh Environments
  • Shown with round ball knob handle.
  • 72 degrees total handle travel
  • Cast Metal Housing construction - Gasketing for outdoor use
  • Handle will spring return to center or friction hold in place
  • Potentiometers and or switches
  • 4-20mA output - For throttle control handle will start at one end.
Pro 5 joystick
RH1 HANDLE
PRO5 with lock

Round Ball

RH with rocker switch and side momentary switch

MI Locking Handle Lift Collar Lock with fingers to move handle.

PRO5-4-20ma

PRO5-18823, 1 axis, 4-20mA output direction without center dead band. ESS420 4-20mA Amplifier card includes potentiometer. Handle will spring return to center position. BH-11 handle with momentary sealed OTTO push button with enable brand blank top of handle. Shaft length 3.1” NEMA 4 cast housing, weather proof, Orientation right side.

IN STOCK

PRO5-71811
PRO5-71811, 1 axis, one-10K center tapped (2 watt) potentiometer , 2- 11AMP SPDT micro switches-one switch on either side of the handle center position.
Handle will spring return to center position.

Handle with mechanical interlock lift
collar on shaft to move handle,
Shaft length 5.16 ”

IN STOCK

  PRO5 Specs pdf
