Too many choices? Through our experience we have designed pots used in light houses (in the UK) , wire winding machines and jet engine test stands. We can help you make an informed potentiometer decision. Call our experts at 800-523-3561, 610-359-1002, fax 610-353-1674 or email fast quotes.
Model 1309-100 , 10 Turn, Counting Dial. Easy to read.
- Military grade 1309 turns counting dial.
- Large contrasting numerals. Readable up to 8 feet.
- Convex window lens permits wide angle viewing.
- Exceeds MIL -E-5272.
- Withstands rugged environmental conditions
- Used in meat packing plants , paper mills, etc..
- Features finger tip brake.
- Zero backlash.
- 2,000,000 revolution life.
- NSN 5355-00-138-9108

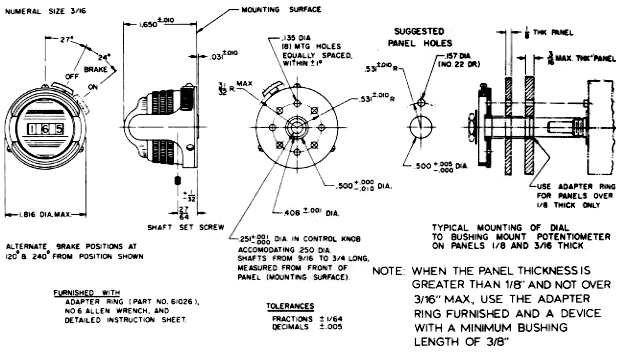

- Dimensions: 1.815" dia x 1.66" depth
- Weight : 4.25 oz.
- Numeral Size : 3/16" height -Shaft length accommodated from panel surface : 9/16" to 3/4"
- Fit standard 1/4" diameter potentiometer shaft.
- Dust Moisture Seal
- Housing : Zinc Die Cast - Finish- Black Enamel
- Knurled Clear Anodized Aluminum Control Knob
