p2080 potentiometer
  • M2078-3-103 Linear Motion Potentiometer

  • Shaft Styles :(Diameter .125" diameter)
  • Spherical Ball ends
  • Mechanical Specs
  • Gold Plated Terminals - Precious Metal Contacts
  • Anodized Aluminum Housing
  • Stainless Steel Shaft
  • Screws and nuts included
  • Stroke lengths & resistance values available : Resistance Tolerance +/-5%
  • 1" stroke: 250, 500,1K,2K2.5K,,5K,10K, 20K, 50K,100K ohms -Lin.:+/-0.5%
  • 2" stroke: 250, 500,1K,2K2.5K,,5K,10K, 20K, 50K,100K ohms -Lin.:+/-0.5%
  • 3" stroke: 250, 500,1K,2K2.5K,,5K,10K, 20K, 50K,100K ohms -Lin.:+/-0.5%
  • 4" stroke: 250, 500,1K,2K2.5K,,5K,10K, 20K, 50K,100K ohms -Lin.:+/-0.5%
  • 5" stroke: 250, 500,1K,2K2.5K,,5K,10K, 20K, 50K,100K ohms -Lin.:+/-0.5%
  • 6" stroke: 250, 500,1K,2K2.5K,,5K,10K, 20K, 50K,100K ohms -Lin.:+/-0.5%
  • 7" stroke: 250, 500,1K,2K2.5K,,5K,10K, 20K, 50K,100K ohms -Lin.:+/-0.5%
  • 8" stroke: 250, 500,1K,2K2.5K,,5K,10K, 20K, 50K,100K ohms -Lin.:+/-0.5%
  • 9" stroke: 250, 500,1K,2K2.5K,,5K,10K, 20K, 50K,100K ohms -Lin.:+/-0.5%
  • 10" stroke: 250, 500,1K,2K2.5K,,5K,10K, 20K, 50K,100K ohms -Lin.:+/-0.5%
  • Power rating :1 watt per inch

M2078 Potentiometer Drawing pdf

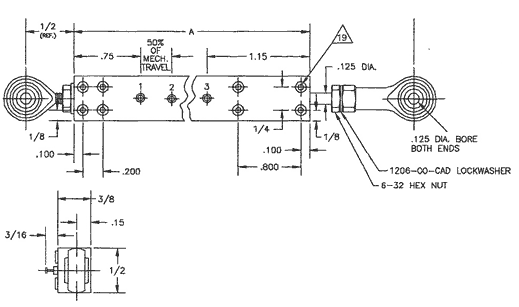

P2080 drawing
