SAJ2515 : One Axis. Spring return to center or one end. Standard 5K ohms.

saj2515
  • SAJ2515 with "G" round 2 1/4" diameter knob

  • Handle spring returns to center postion.140 degrees total handle travel.
  • Single axis , center tapped 5K potentiometer standard
  • Options : Spring return to one end, mounting bracket , two switches.
  • Power rating 1 watt. Conductive plastic element for long life.
  • Available resistance values : XXX= 500 ohms, 1K,2K,5K 10K or 20K ohms.
  • Available without G knob or F handle : SAJ2515-XXX
  • Spring return to one end SAJ3000-xxx ohms.
  • SAJ2515-G-XXX Drawing pdf
saj2515F
  • SAJ2515 with "F" aluminum handle

  • Handle spring returns to center postion.140 degrees total handle travel.
  • Single axis , 3 terminals or center tapped (4th terminal)
  • Options : Spring return to one end, mounting bracket , two switches.
  • Power rating 1 watt. Conductive plastic element for long life.
  • Available resistance values : XXX= 500 ohms, 1K,2K,5K 10K or 20K ohms.
  • XXX- Specify resistance value when ordering.
  • Spring return to one end SAJ3000-xxx ohms.
  • SAJ2515-F-XXX Drawing pdf

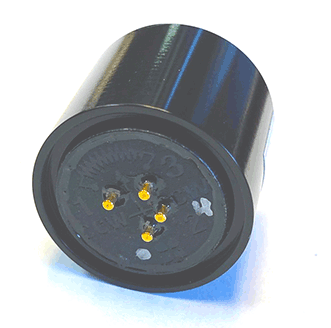

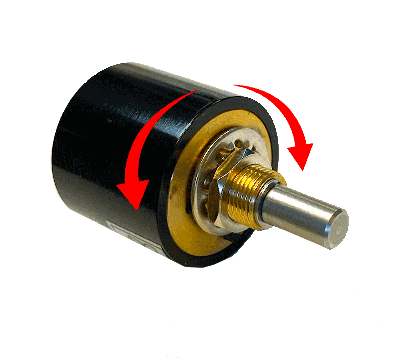

SAJ-G-knob saj2515-side

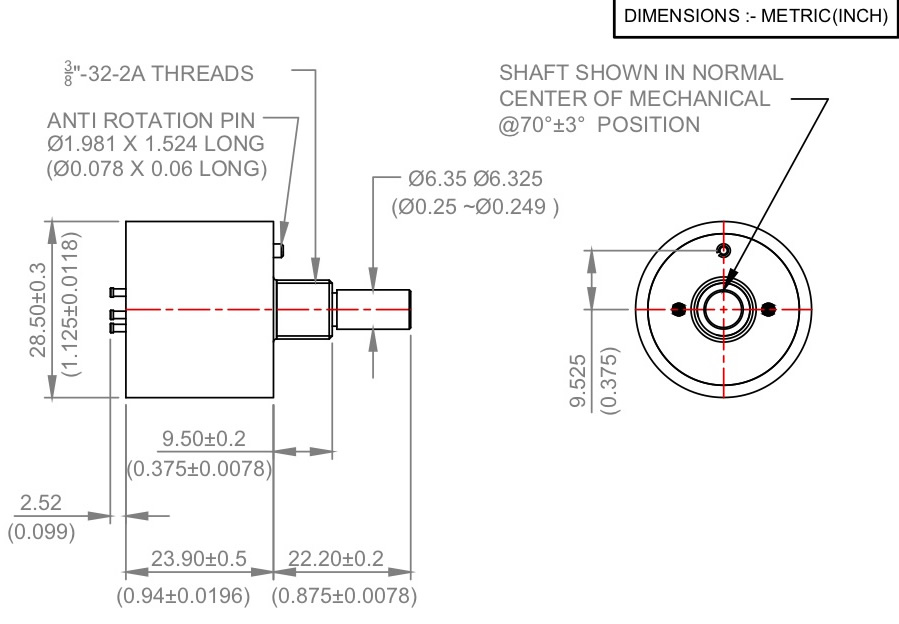

saj2515dwg
